Global shutter sensor miniaturization is rapidly transforming in-cabin automotive monitoring systems with smaller, more powerful imaging solutions that maintain exceptional performance. The latest innovations combine advanced packaging technologies with cutting-edge CMOS sensors to create driver monitoring cameras that deliver high-quality imaging in increasingly compact form factors.

Key Takeaways

• Miniaturized global shutter sensors eliminate motion distortion critical for accurate driver monitoring, with newer models 40% smaller than predecessors

• Advanced packaging technologies like System-in-Package (SiP) and Chip-Scale Packaging enable ultra-compact camera modules with reduced complexity

• These compact modules can be discretely integrated into vehicle interiors without compromising aesthetics or functionality

• Enhanced low-light performance ensures reliable driver state detection in all lighting conditions

• DMS cameras will be mandatory in all new EU vehicles by 2026, accelerating innovation in this field

The Evolution of Global Shutter Technology for Automotive Applications

Global shutter sensors have become a game-changing technology for driver monitoring systems. Unlike traditional rolling shutter sensors that capture images line by line, global shutter sensors capture all pixels simultaneously, completely eliminating the motion distortion that can compromise accurate driver monitoring. This capability is crucial for detecting rapid head and eye movements that indicate potential drowsiness or distraction.

Recent advancements have dramatically reduced the size of these sensors while maintaining or improving performance. Sony's Pregius second-generation sensor (IMX392) is over 40% smaller than the original IMX174 while delivering equivalent imaging quality. Similarly, OMNIVISION's OX01N1B has pushed boundaries with 1.5MP resolution, 2.2μm pixel size, and industry-leading 36% NIR quantum efficiency for outstanding performance in low-light conditions.

These technological improvements enable DMS cameras to accurately capture driver behavior without the motion artifacts common in older systems. The enhanced clarity directly translates to improved safety outcomes through more precise monitoring.

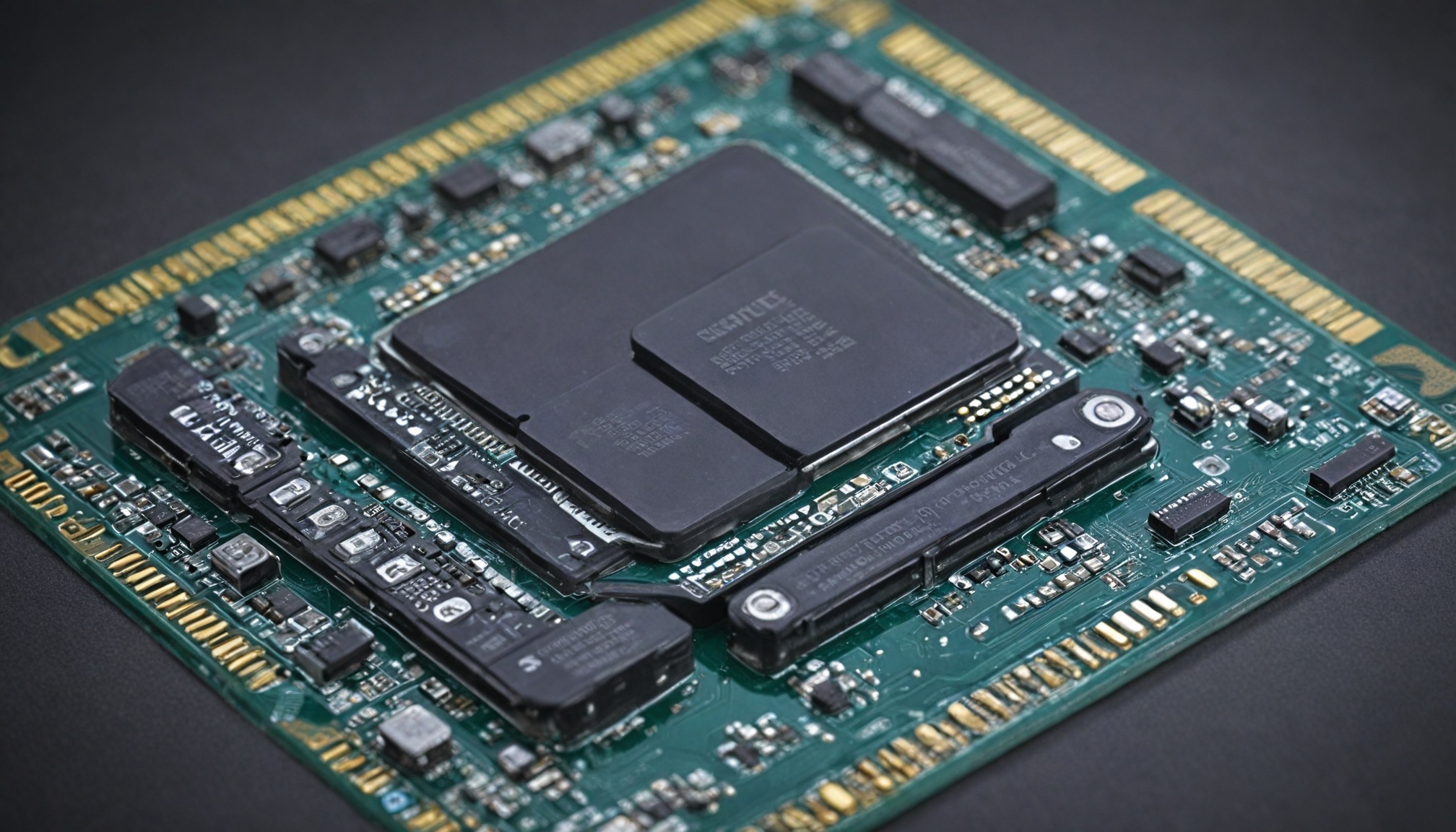

How Advanced Packaging Technologies Enable Ultra-Compact DMS Modules

The dramatic miniaturization of DMS camera modules wouldn't be possible without revolutionary packaging technologies. System-in-Package (SiP) represents a significant engineering breakthrough, integrating multiple components—image sensors, processors, and memory—into single, robust modules. This integration significantly reduces board-mounted height, layer count, and overall system complexity while simultaneously improving reliability and manufacturing yield.

Complementing SiP, Chip-Scale Packaging (CSP) brings IC package size nearly identical to the chip itself, eliminating excess material and bulk. CSP and wafer-level packaging enable direct encapsulation on the wafer, which streamlines assembly processes and reduces production costs. The resulting "all-in-one" camera modules require minimal wiring and occupy a fraction of the space needed by previous generations.

Together, these packaging technologies solve the fundamental challenge of fitting sophisticated monitoring systems into the tight spaces available in modern vehicle cabins. They provide automotive engineers with flexible integration options that don't compromise on functionality or performance.

Imaging Performance Advancements in Reduced Form Factors

Despite their smaller size, modern DMS camera modules deliver superior imaging performance thanks to several key technological innovations. Back-side illumination (BSI) and stacked sensor architectures maximize signal processing capability while maintaining compact footprints. These design approaches fundamentally restructure how light is captured and processed, resulting in better image quality even in challenging light conditions.

High modulation transfer function (MTF) values ensure sharper images, which directly translates to more accurate facial landmark detection and gaze tracking. OMNIVISION's OX01N1B achieves simultaneous image detection across all pixels with exceptional sensitivity in the NIR spectrum, which is particularly valuable for night-time monitoring when cabin illumination is minimal.

These advancements enable accurate driver state monitoring across the full spectrum of automotive lighting conditions—from bright sunlight to complete darkness. The result is a monitoring system that remains vigilant regardless of environmental conditions, providing consistent safety monitoring at all times.

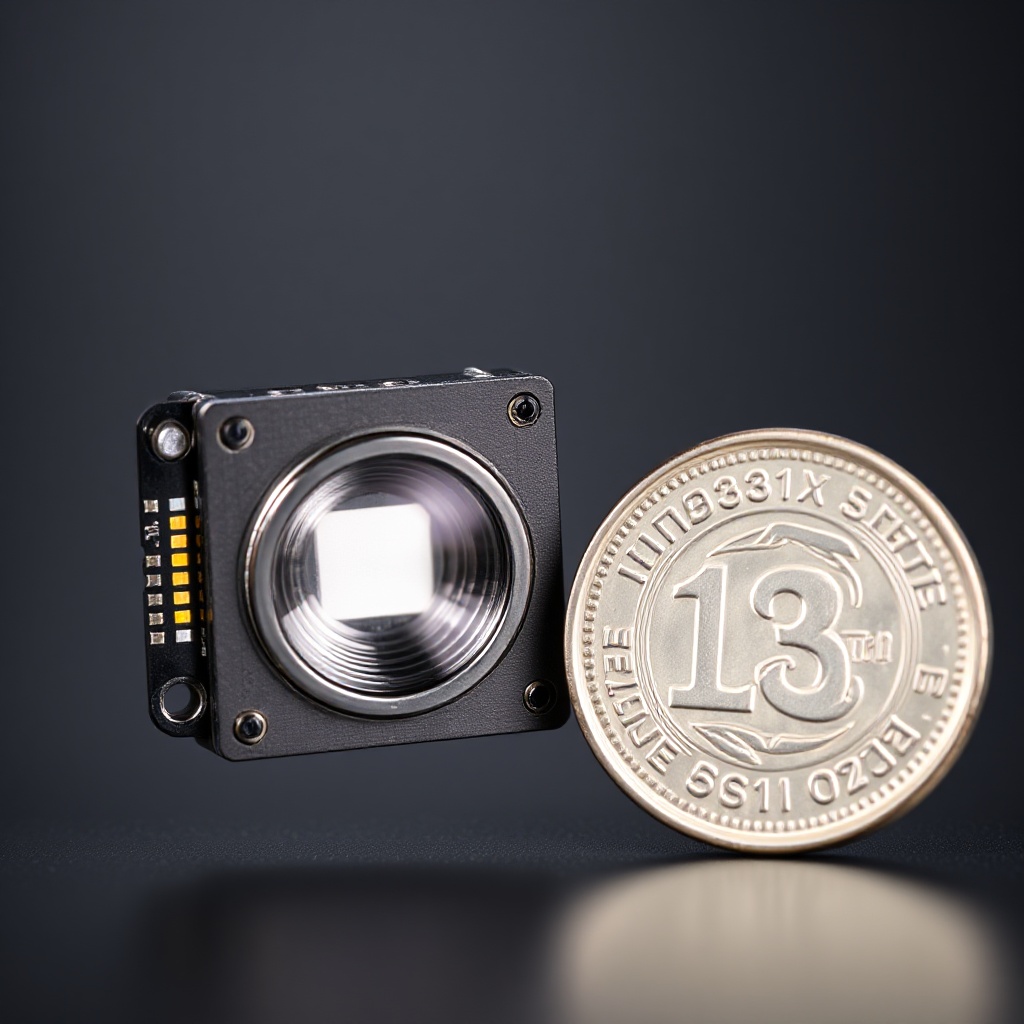

Miniaturization Impact on Camera Placement and Design

The dramatic reduction in camera module size has transformed integration possibilities for automotive designers. Next-generation DMS cameras can now be placed in locations that were previously impossible, including steering columns, rearview mirrors, and A-pillars. This flexibility supports automotive OEMs' growing need for unobtrusive monitoring solutions that maintain the aesthetic appeal of vehicle interiors.

Compact designs preserve interior aesthetics while enabling critical safety and convenience features. The ability to integrate cameras almost invisibly into the cabin environment represents a significant leap forward from earlier, more conspicuous monitoring systems. This subtle approach to safety technology enhances driver acceptance while maintaining comprehensive monitoring capabilities.

Vehicle designers can now implement sophisticated monitoring systems without compromising their interior design vision, creating cabins that are both beautiful and intelligent.

Advancing Driver Monitoring Capabilities Through Sensor Innovation

Miniaturized global shutter sensors have enabled more sophisticated driver monitoring capabilities. The enhanced image clarity and reduced motion artifacts significantly improve algorithm performance for detecting states like drowsiness, distraction, and impairment. This improved detection accuracy directly enhances vehicle safety by identifying potentially dangerous driver states before they lead to accidents.

The superior low-light performance of modern sensors supports reliable monitoring in all driving conditions, day and night. Higher resolution and better motion handling improve facial recognition accuracy and gaze tracking precision. These capabilities allow the vehicle to monitor driver attention with unprecedented accuracy, creating opportunities for proactive safety interventions.

Key driver states that modern DMS systems can accurately detect include:

• Drowsiness and microsleep episodes

• Distraction and attention diversion

• Cognitive load and stress levels

• Phone usage and other secondary activities

• Signs of medical distress or impairment

Economic and Manufacturing Considerations

The accelerating pace of sensor technology innovation has created favorable economic conditions for widespread DMS adoption. The average compound annual growth rate of video sensor and processing technology innovation has been approximately 44% in recent decades, driving rapid performance improvements while simultaneously reducing costs.

Ongoing miniaturization supports cost-effective mass deployment of advanced in-cabin camera systems. Packaging innovations like SiP and CSP improve manufacturing yield and reliability in demanding automotive environments, which face extreme temperature variations and constant vibration.

Streamlined production processes for smaller modules reduce overall system costs for vehicle manufacturers. This economic efficiency is particularly important as regulatory requirements like the EU's 2026 DMS mandate approach, requiring cost-effective solutions that can be deployed across entire vehicle lineups, from luxury models to entry-level vehicles.

Future Applications in Autonomous and Smart Vehicle Systems

Compact DMS modules are becoming essential components for Level 2+ automated driving systems, where they enable expanded monitoring capabilities. Driver handover monitoring between autonomous and manual control becomes more reliable with higher-quality imaging, ensuring safe transitions that account for driver attention and readiness.

These technologies also support integration with vehicle personalization systems, enabling automatic seat adjustment, entertainment preferences, and security features based on driver identification. The reduced size and simplified integration of modern camera modules make multi-camera cabin monitoring systems feasible, opening possibilities for comprehensive occupant awareness.

As vehicles continue their evolution toward greater autonomy and intelligence, miniaturized global shutter camera modules will play an increasingly central role in creating safe, personalized driving experiences that adapt to individual users while maintaining vigilant safety monitoring.
